16-inch foundry cutting wheels · OEM packing available
We manufacture T41 resin cutting wheels for foundry and casting work. Standard 400/405mm options are 3.2mm thick with a 25.4mm or 32mm bore. Cutting and grinding wheels from 100 to 405mm are also available.
Product Center
Our main products include 400/405mm foundry wheels, small cutting discs, 305/355mm stationary wheels, T27 grinding wheels and forming wheels.
Send the size, quantity, material and packing requirement for a quotation.
Export Terms
Terms vary by product mix, packing, quantity and destination.
Real Factory Footage
These clips were filmed recently in our workshop and packing area.

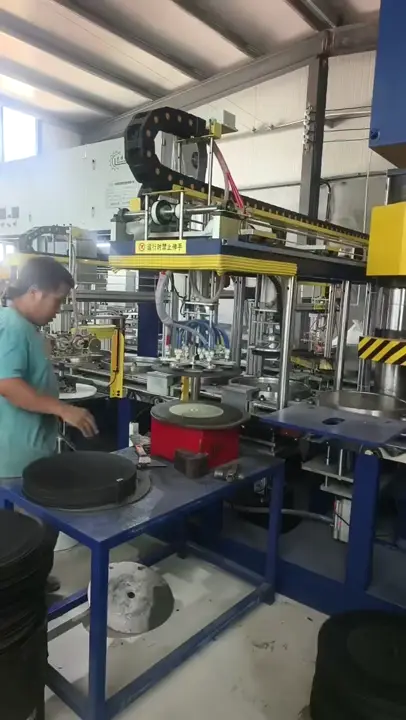

Large cutting wheels being formed in the workshop.
Finished wheels are placed on checking equipment before packing preparation.
Production equipment for other cutting and grinding wheel sizes.
Finished wheels being sorted before packing.
Specification Table
For a quote, send the exact size, quantity, material and packing requirement.
| Product | Diameter / type | Thickness / bore | Material / grit | Max speed / RPM reference | Packing / OEM | RFQ status |
|---|---|---|---|---|---|---|
| 400/405mm foundry cutting wheel | 400 / 405mm, T41 flat | 3.2mm / 25.4 or 32mm | White or brown corundum 24#-36# |
80 m/s About 3,800 rpm reference. Final value follows wheel marking and machine speed. |
25 pcs/carton; OEM label and carton discussion available. | Made to confirmed order specifications. |
| Stationary cutting wheel | 305 / 355mm, T41 flat | Common 2.5-3.5mm / 25.4 or 32mm | Corundum abrasive; grit and bond confirmed by application. | 80 m/s 355mm about 4,300 rpm. Final value follows wheel marking. |
Export carton or OEM packing by confirmed order. | Made to confirmed order specifications. |
| Small cutting discs 100/105/107/115/125/150/180/230mm, T41/T42 |
100-230mm, T41 / T42 | 1.0/1.2/1.6/2.0mm / 16 or 22.2mm | Corundum abrasive; grit and bond confirmed by material. | 80 m/s 100-107mm about 15,200 rpm; 115mm about 13,300 rpm; 125mm about 12,250 rpm; 180mm about 8,600 rpm; 230mm about 6,600 rpm. |
Inner box, carton, shrink pack or OEM color box by RFQ. | Made to confirmed order specifications. |
| Depressed center grinding wheel T27 |
100-230mm, T27 | 4-6mm common / 16 or 22.2mm | Brown corundum / white corundum options; hardness confirmed before order. | Usually 80 m/s reference; final RPM follows wheel marking. | Carton or OEM packing; label design can be discussed. | Made to confirmed order specifications. |
| Forming / polishing wheel | 100 / 125 / 150 / 180mm | 100x6x16, 100x3x16, 125x6x22, 150x6x22, 180x6x22 | White corundum / brown corundum | 60 m/s Final RPM follows wheel marking and machine speed. |
Carton or customized export packing; samples can be discussed. | Main product line for RFQ. |
Request a Quote
Fill in the main order details, then send them by email or WhatsApp.
Buyer FAQ
Contact us if your specification or certification requirement is not listed.
No. Cutting wheel prices change with model, quantity, packing and destination. Send the RFQ details for a current quotation.
Yes, OEM label, carton and specification mixes can be discussed for export orders.
Safety marking can be prepared according to buyer requirements. Please confirm required certification before order.
Use proper guards and PPE, check wheel speed against machine speed, avoid side pressure on cutting wheels, and stop using damaged wheels.
Contact
Send model, quantity, target material and packing requirements. We will reply through email, phone or WhatsApp.
